• PVC (Polyvinyl Chloride): Rigid, corrosion-resistant, and mechanically strong.

• Color Coding:

  • White: Schedule 40, for standard pressure and general-purpose applications.

  • Gray: Schedule 80, designed for higher-pressure systems requiring thicker walls and greater strength.

Standards Compliance:

• ASTM D 2466: Schedule 40 PVC pressure fittings.

• ASTM D 2467: Schedule 80 PVC pressure fittings.

• ASTM F 1970: Solvent cement joining systems for PVC pressure applications.

Design & Function:

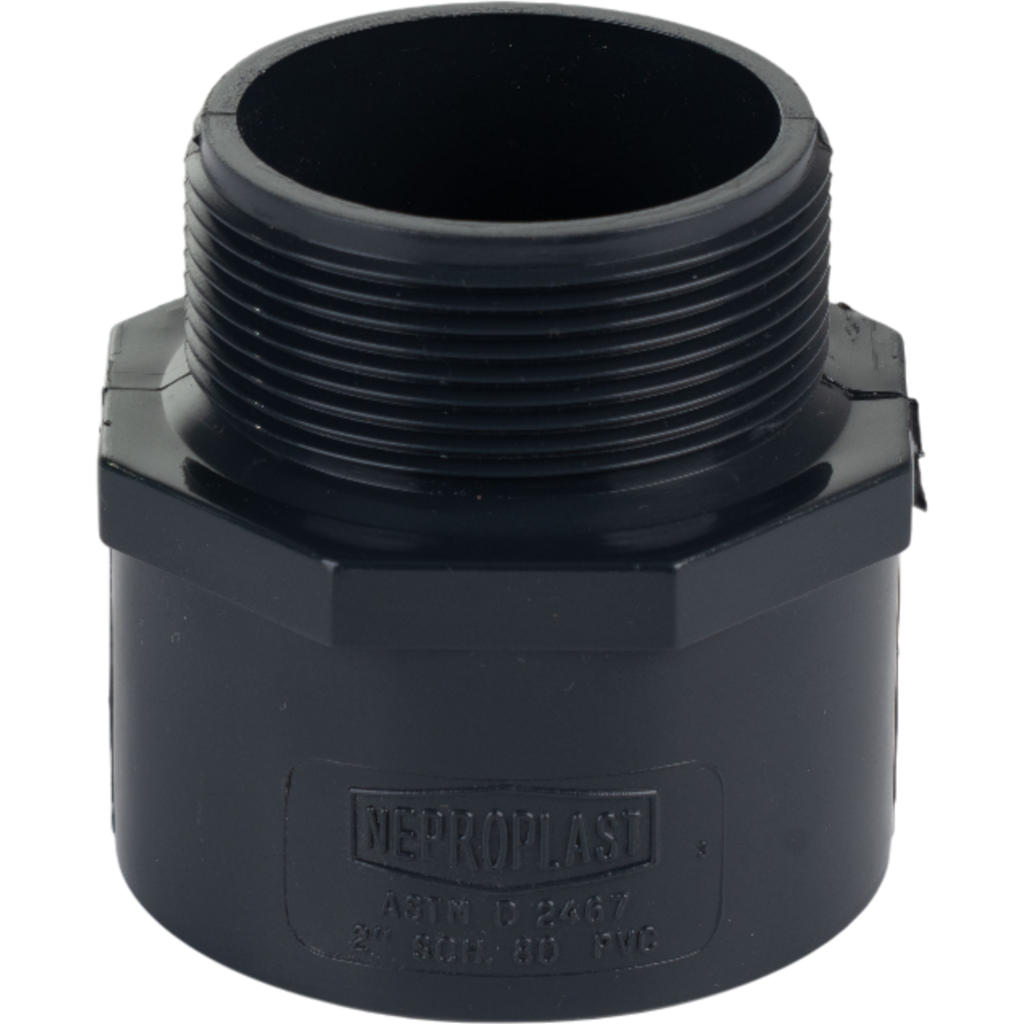

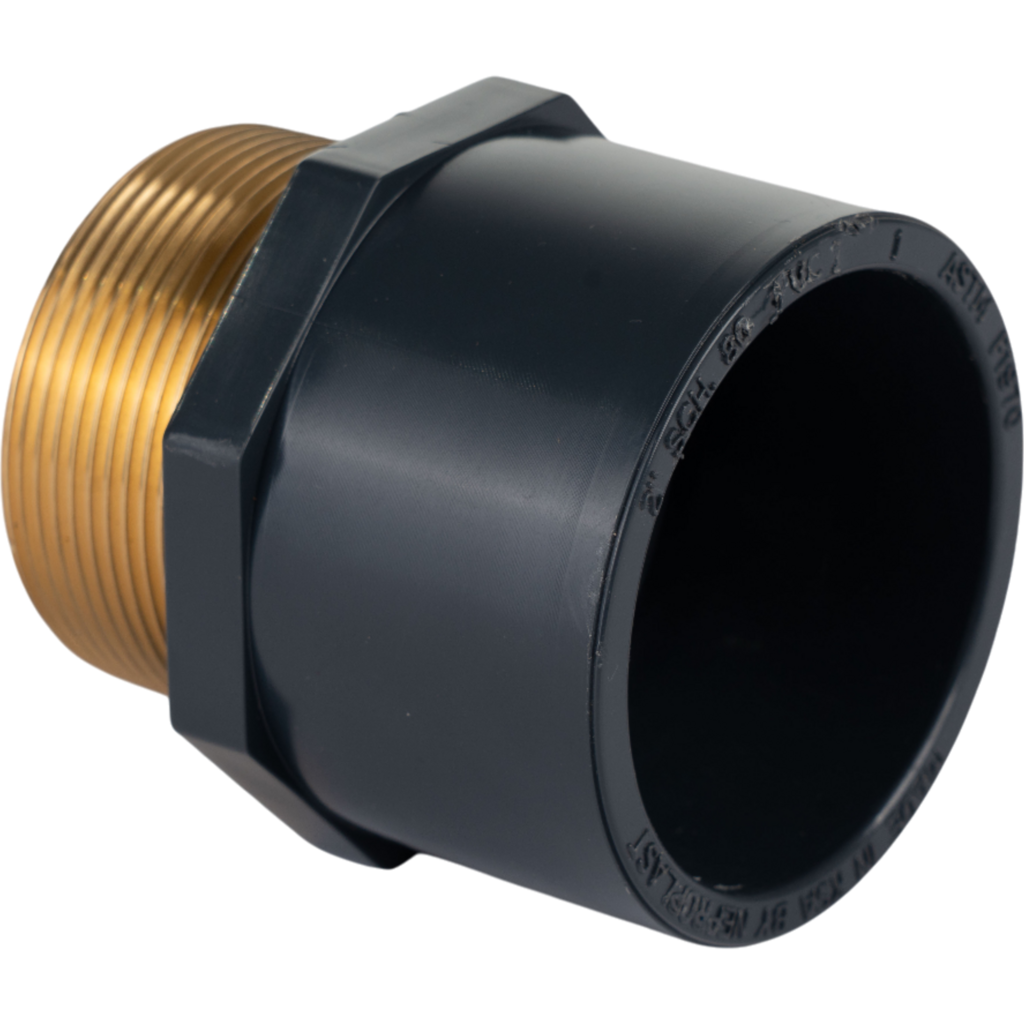

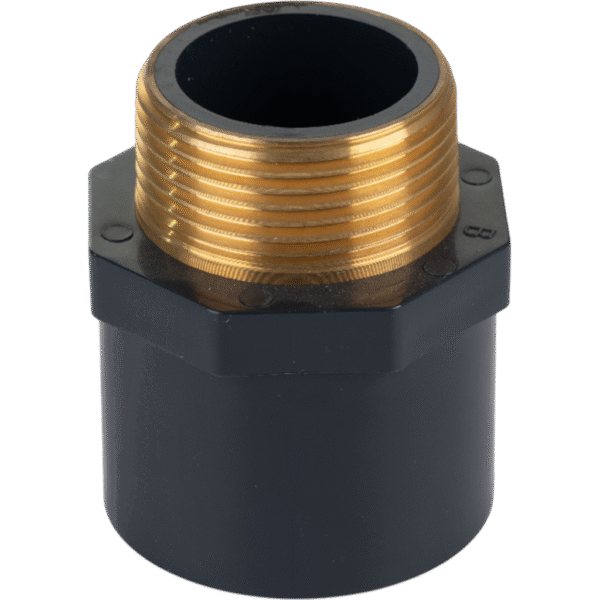

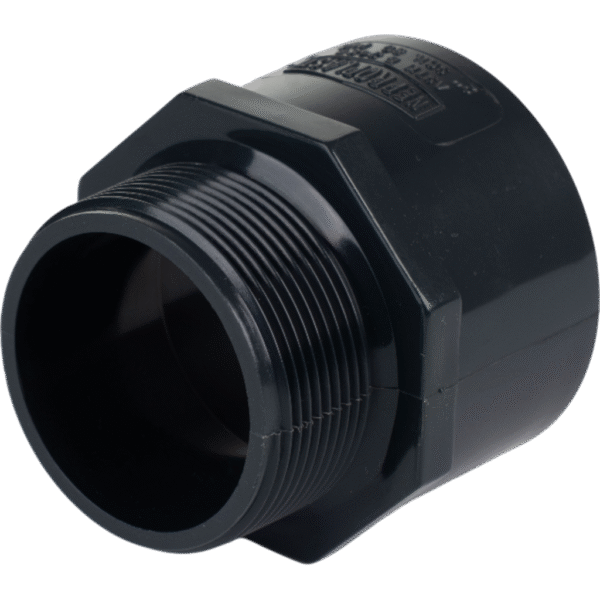

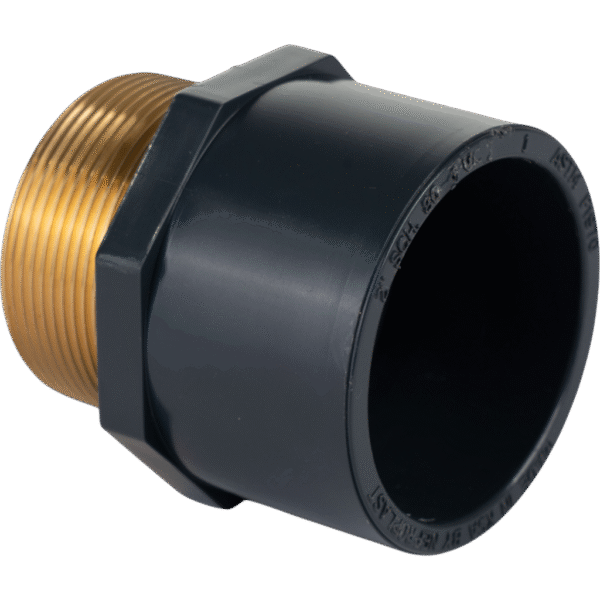

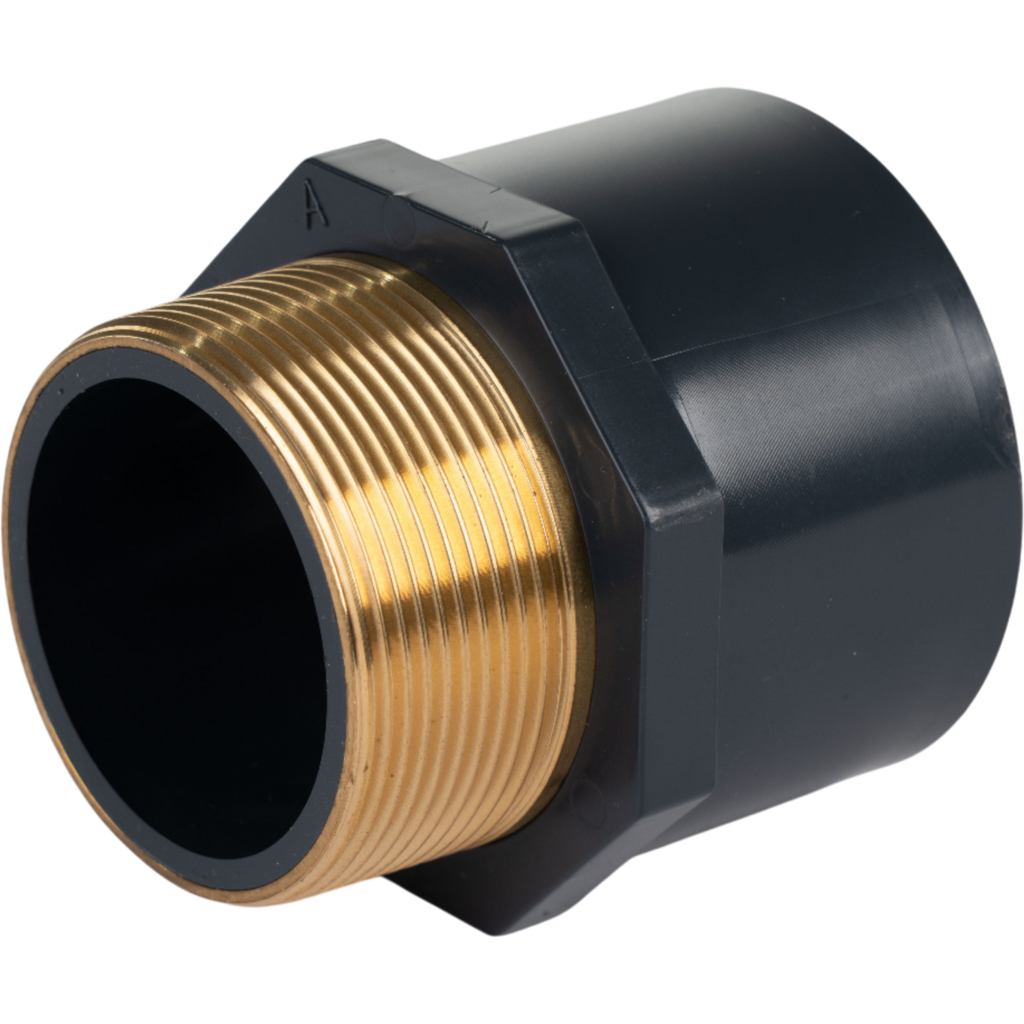

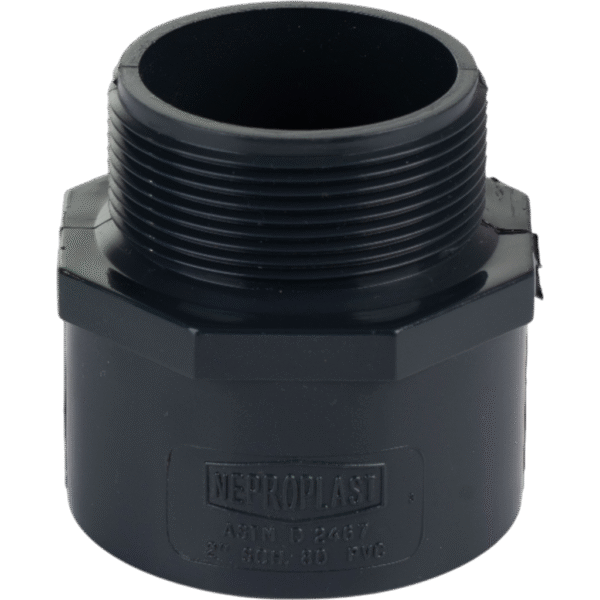

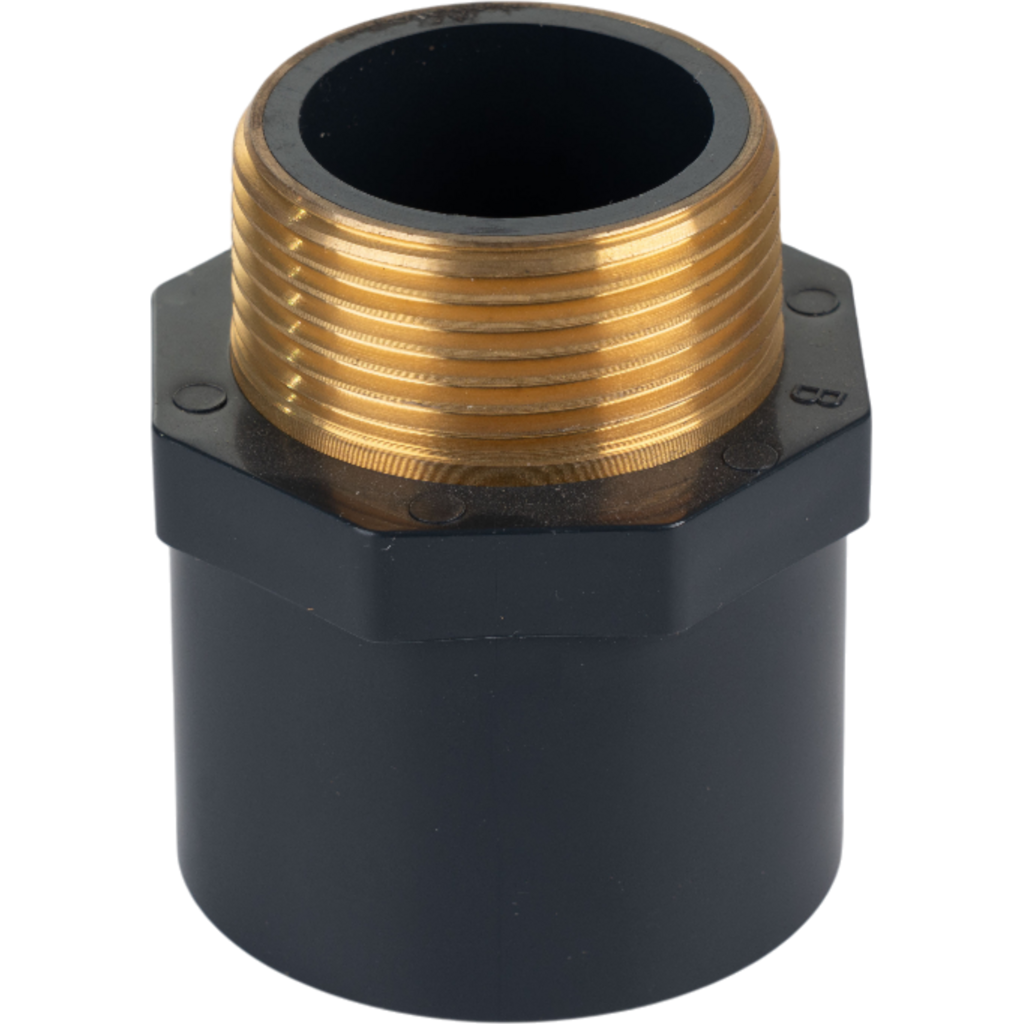

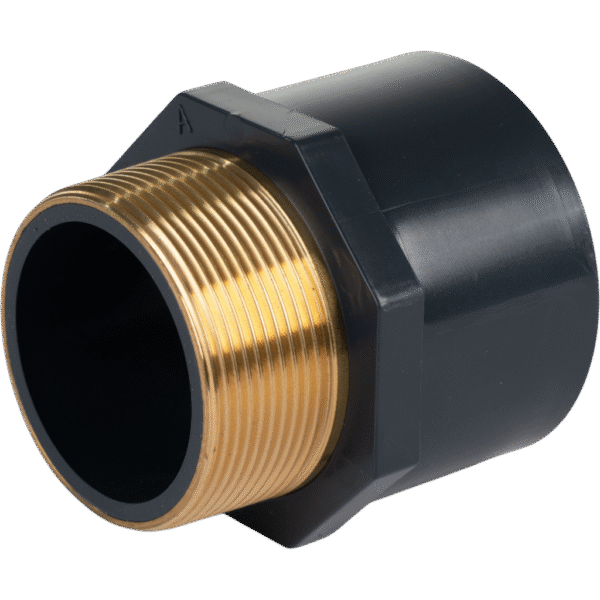

• Male Adapter: Provides a threaded male connection to join PVC pipes to female-threaded fittings or equipment.

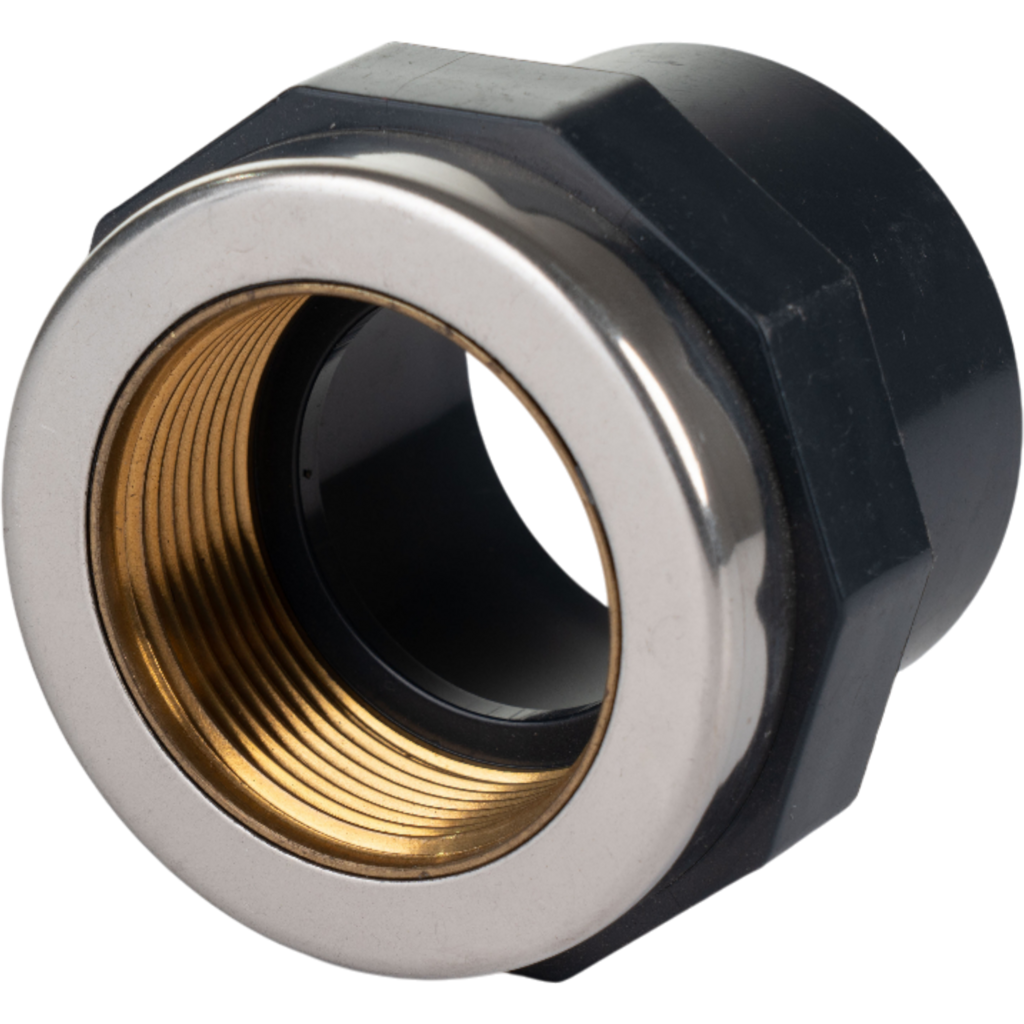

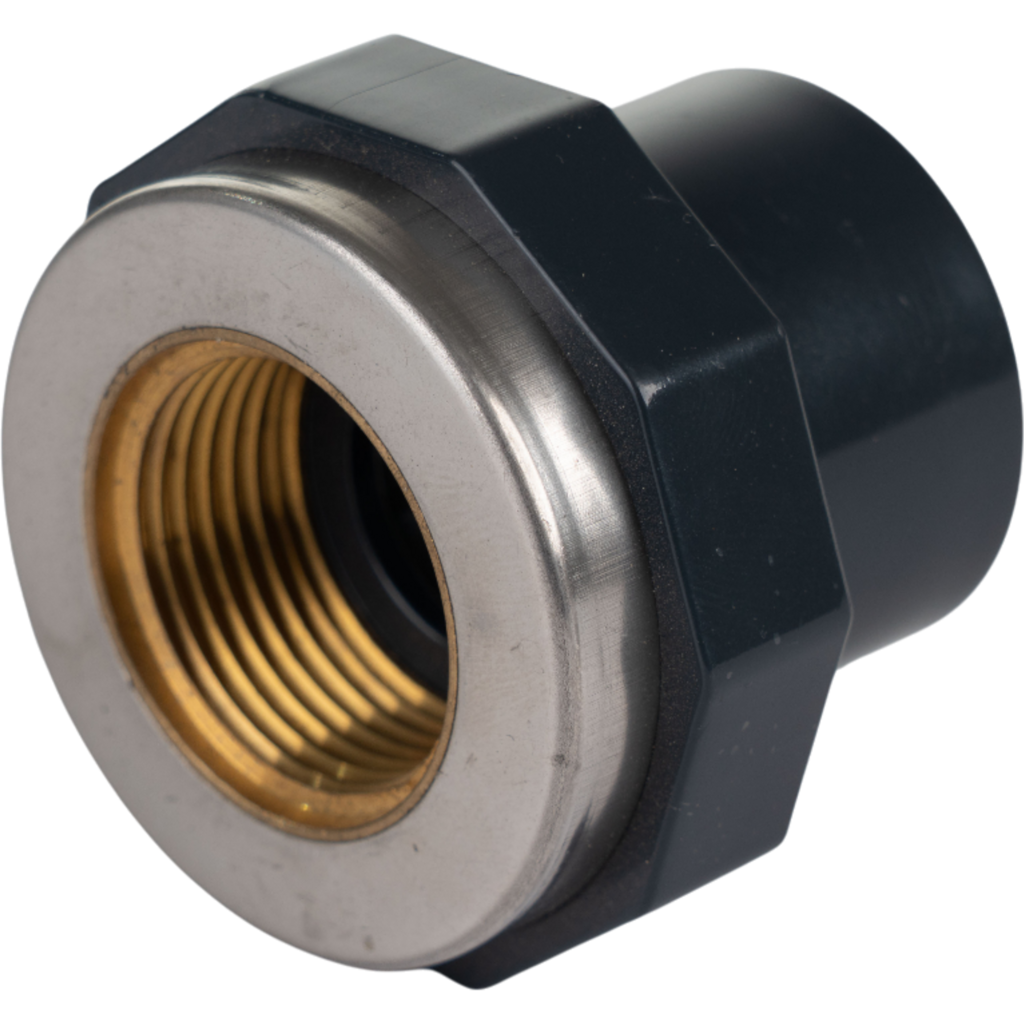

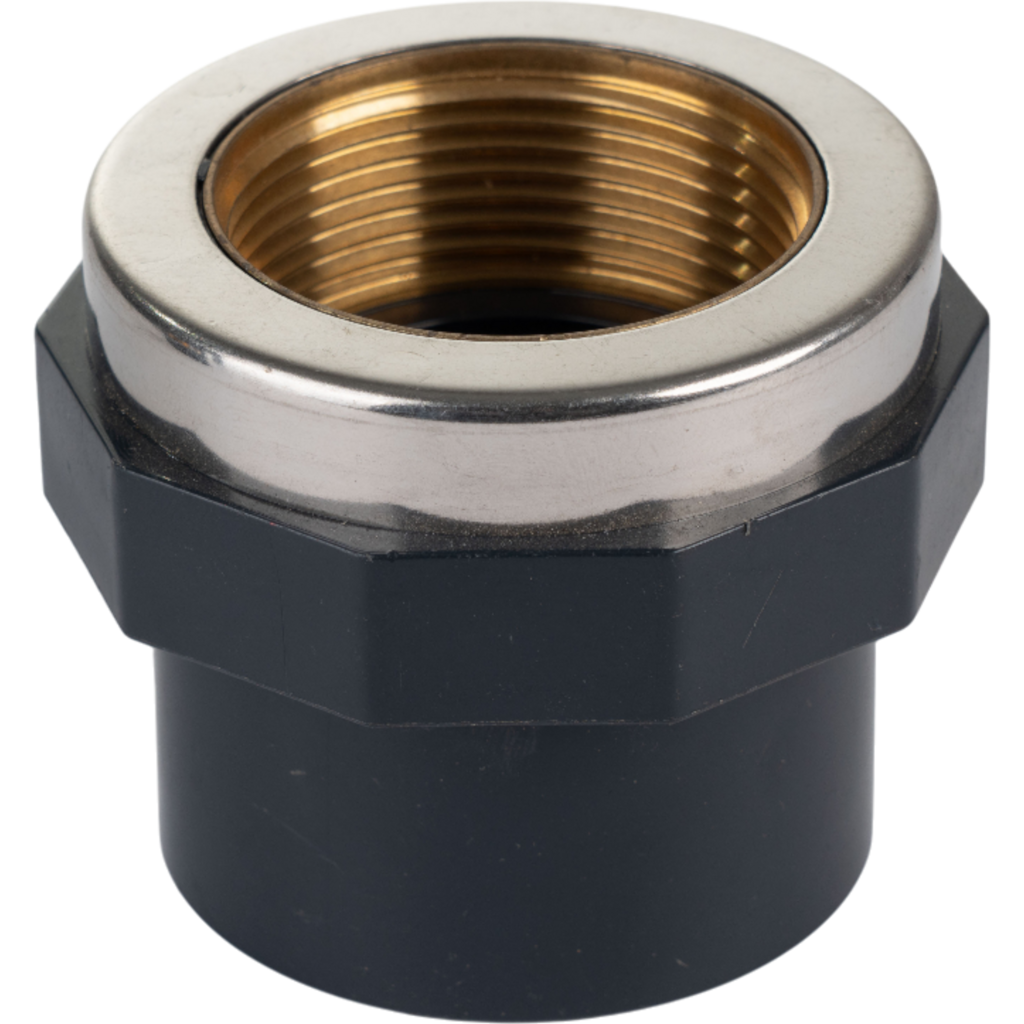

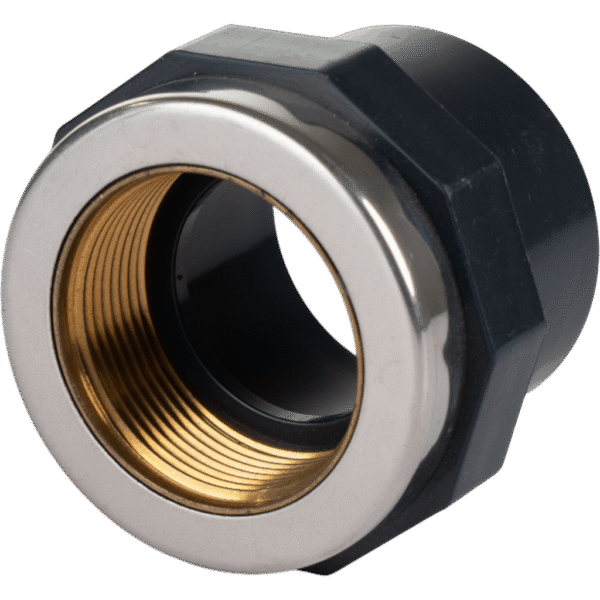

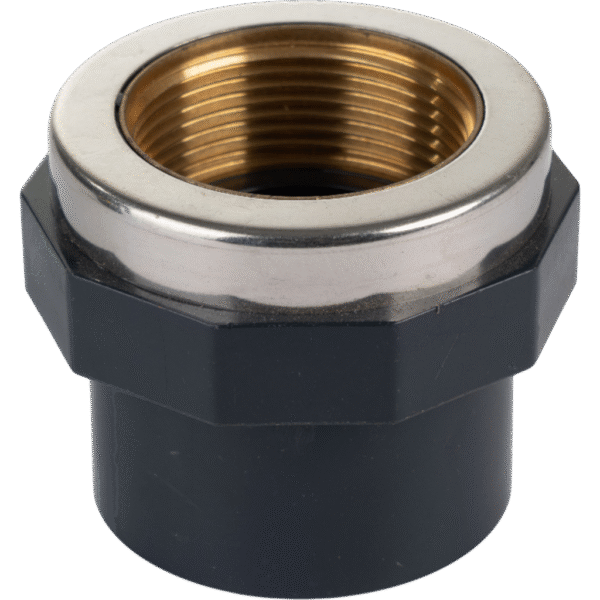

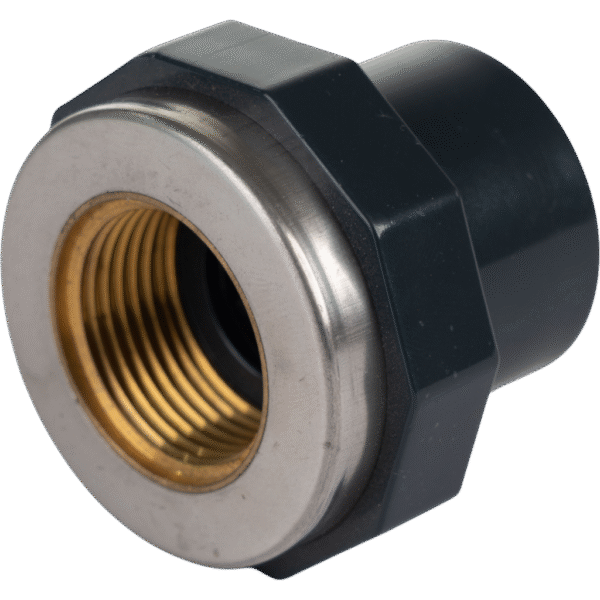

• Female Adapter: Provides a threaded female connection for receiving male-threaded components.

• Available in Schedule 40 and Schedule 80 to match system pressure requirements.

• Compatible with standard PVC solvent cement for permanent, leak-free connections.

Performance Characteristics:

• Pressure Ratings: According to Schedule 40 or Schedule 80 specifications.

• Temperature Range: Continuous operation up to ~60 °C.

• Sealing: Solvent cement provides a secure, leak-free joint.

• Service Life: Over 50 years under normal operating conditions.

Applications:

• Potable water distribution systems.

• Industrial and utility piping networks.

• Connections to valves, pumps, and threaded equipment.

• Drainage and pressure piping systems requiring secure threaded transitions.

Installation:

• Apply PVC solvent cement according to ASTM F 1970 standards for a permanent, leak-proof joint.

• Male or female threads can be hand-tightened and optionally sealed with compatible thread sealant for additional security.

Key Benefits:

• Durable, corrosion-resistant, and mechanically strong.

• Color-coded for easy identification of Schedule 40 and Schedule 80 systems.

• Compatible with standard threaded connections and PVC piping.

• Quick and reliable installation, reducing labor and downtime.
