Telecommunication Pipes

Description

Neproplast Telecommunication Pipes include Inner Ducts and Corrugated Optic Ducts (COD), developed under strict quality standards for telecommunication applications.

Key Features:

Inner Duct Pipes: Low-friction silicon inner layer for easy cable installation and protection.
Corrugated Optic Ducts (COD): Flexible, crush-resistant protective casing for underground and challenging installations.
Multi-color options for project differentiation and easy identification.
Durable and flexible construction, designed to withstand mechanical stress and environmental exposure.

Overview:
Neproplast Inner Duct Pipes are specialized fiber optic conduits that serve as the primary channel for optical fibers, ensuring minimal friction and efficient cable installation.

Material & Construction:

Made from high-quality HDPE with a siliconized inner layer to reduce friction and protect cables.
Smooth internal surface ensures easy cable pulling and minimal risk of fiber damage.

Dimensions & Tolerances:

Available in standard nominal diameters ranging from DN16 to DN50 (or customer-specified sizes).
Precise outside diameter, wall thickness, and straightness tolerances for reliable jointing and installation.

Performance & Mechanical Properties:

Flexibility: Bends easily to accommodate installation routes without kinking.
Impact Resistance: Resistant to accidental handling stress during deployment.
Durability: Long-term performance in indoor, duct, or conduit environments.

Applications:

Fiber optic cable installation in telecommunication networks.
Ideal for indoor duct systems, microduct networks, and multi-cable distribution.

Outer Diameter (inch)	SDR 11 Wall Thickness (mm)	SDR 11 Color	Standard
1"	3.05	Multi-Color	ASTM F 2160
1 1/2"	4.39	Multi-Color	ASTM F 2160

Inners2 Pipe Specifications

Outer Diameter (mm)	Single Layer Wall Thickness (mm)	Single Layer Color	Multilayer Wall Thickness (mm)	Multilayer Item Code	Standard
10	2.0	Multi-Color			Neproplast Standard
20	1.9	Multi-Color			Neproplast Standard
27	2.5	Multi-Color			Neproplast Standard
33	2	Multi-Color	2.5	Multi-Color	Neproplast Standard
38	2.2	Multi-Color	3		Neproplast Standard
40	2.7	Multi-Color			Neproplast Standard
42	2.2	Multi-Color	2.7	Multi-Color	Neproplast Standard

Overview:

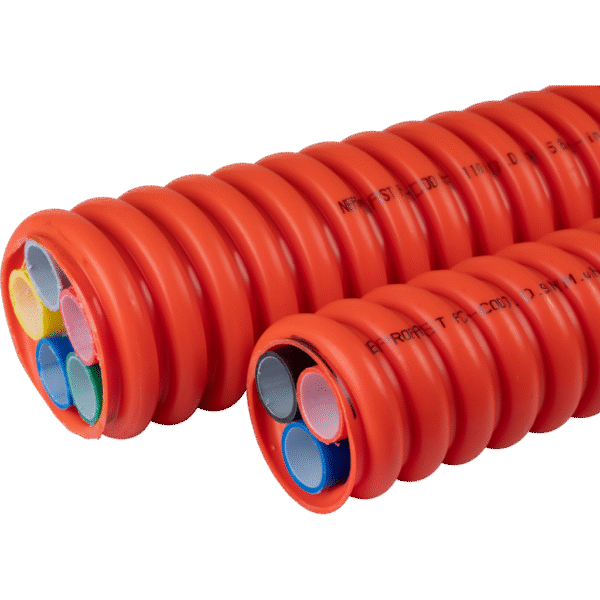

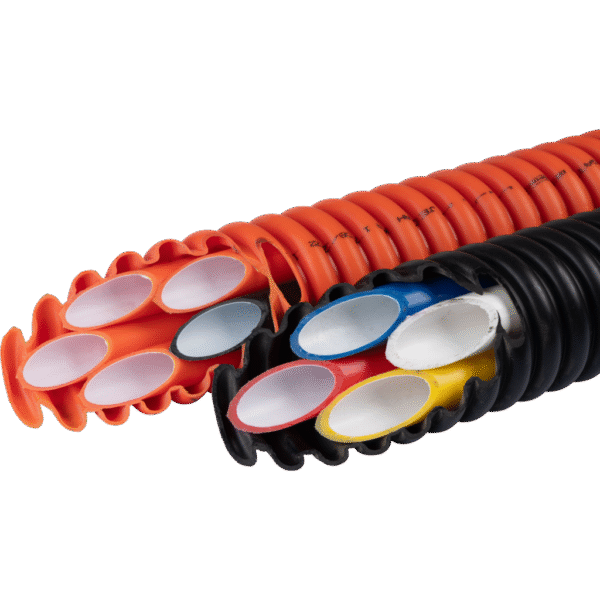

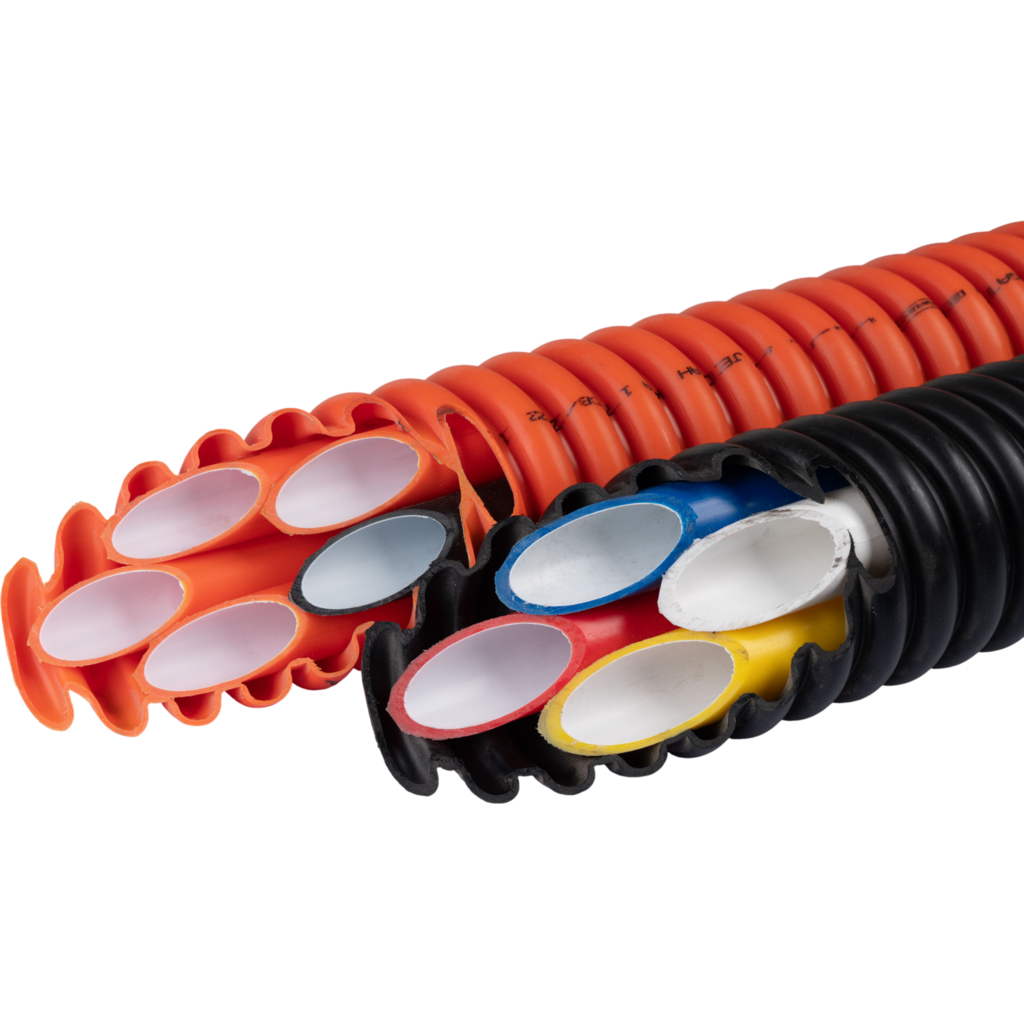

Neproplast Corrugated Optic Ducts are protective casings for Inner Ducts, designed to provide mechanical protection, flexibility, and crush resistance, particularly for underground installations.

Material & Construction:

Manufactured from HDPE with a corrugated exterior for strength and flexibility.
Multi-color options for project differentiation and easy identification.
Provides robust protection against external loads, soil pressure, and environmental hazards.

Dimensions & Tolerances:

Standard sizes from DN25 to DN110 (or customizable).
Consistent corrugation pitch, diameter, and wall thickness for reliable performance and compatibility with inner ducts.

Performance & Mechanical Properties:

Crush Resistance: Designed to withstand heavy soil loads and underground conditions.
Flexibility: Easy to bend and route along trenches without compromising structural integrity.
UV and Chemical Resistance: Durable in outdoor environments and resistant to common chemicals in soil.

Applications:

Underground telecommunication networks, housing multiple inner ducts for fiber optic distribution.
Suitable for municipal, industrial, and commercial telecommunication projects where long-term cable protection is critical.
